JS200ST

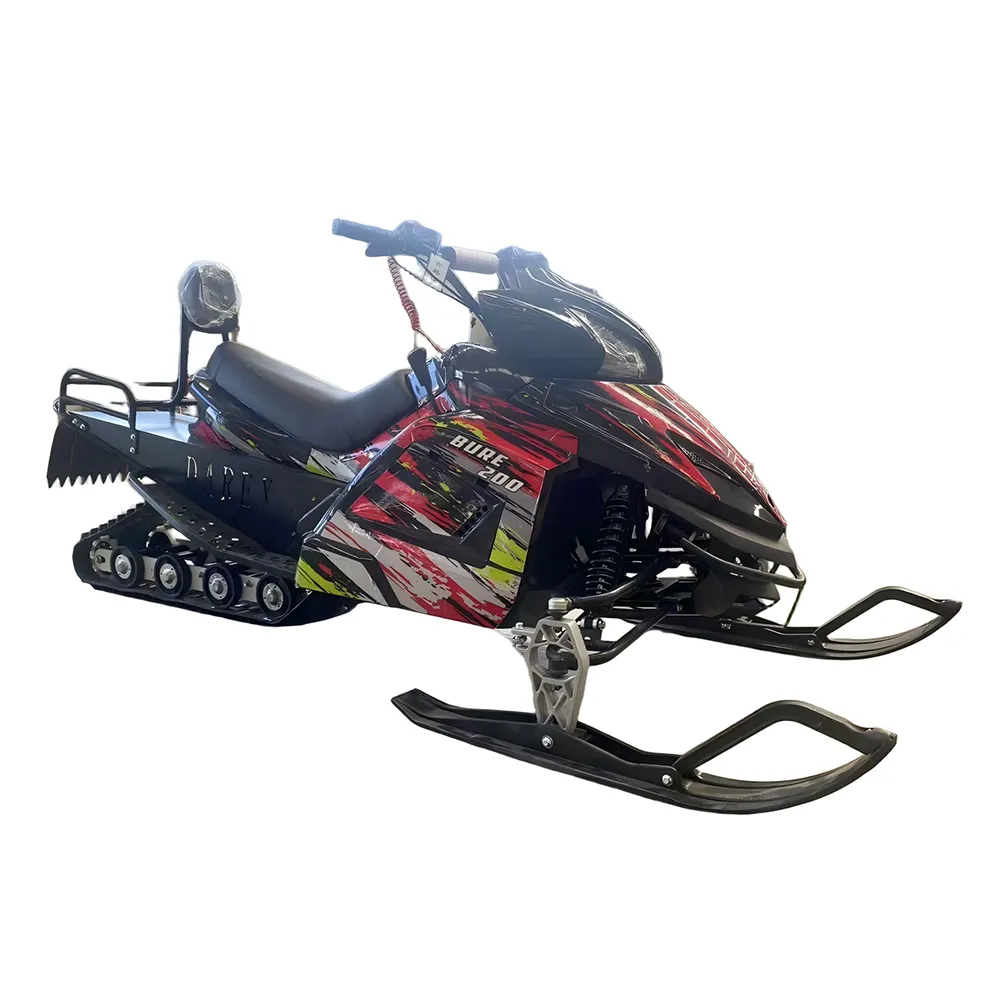

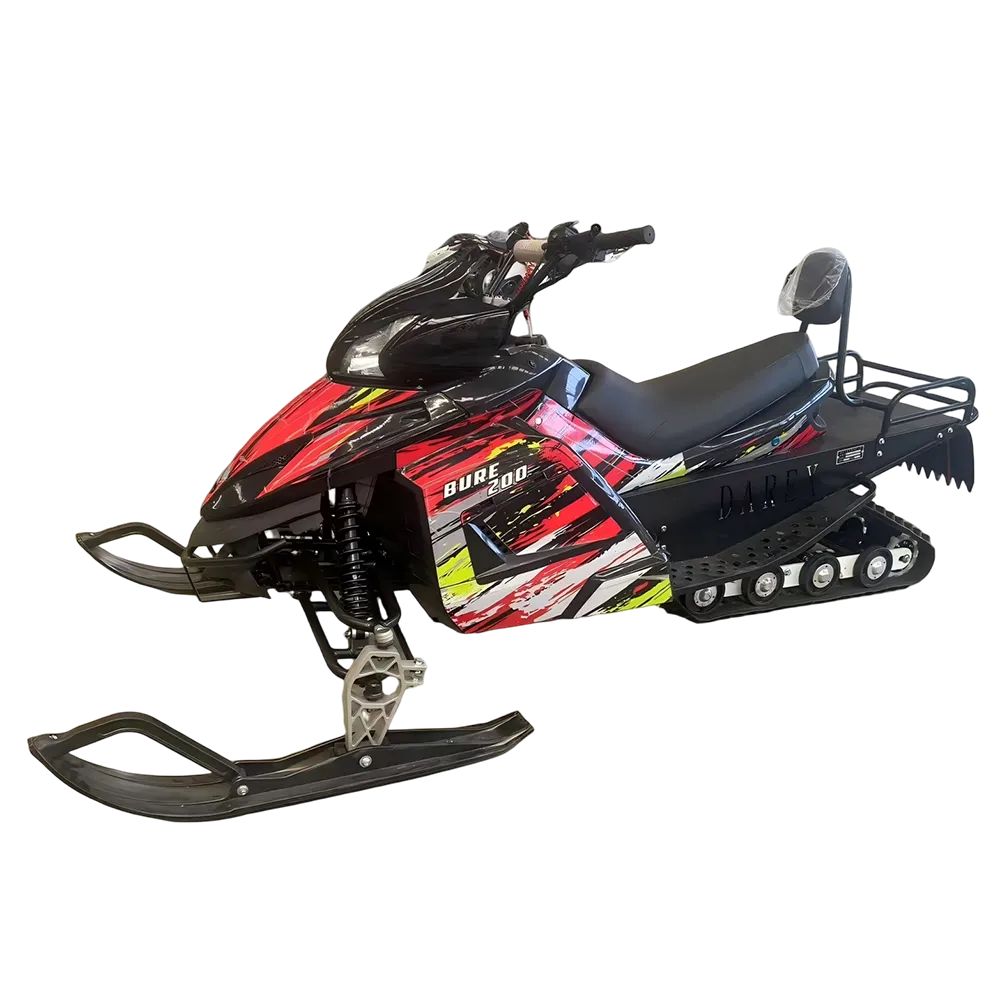

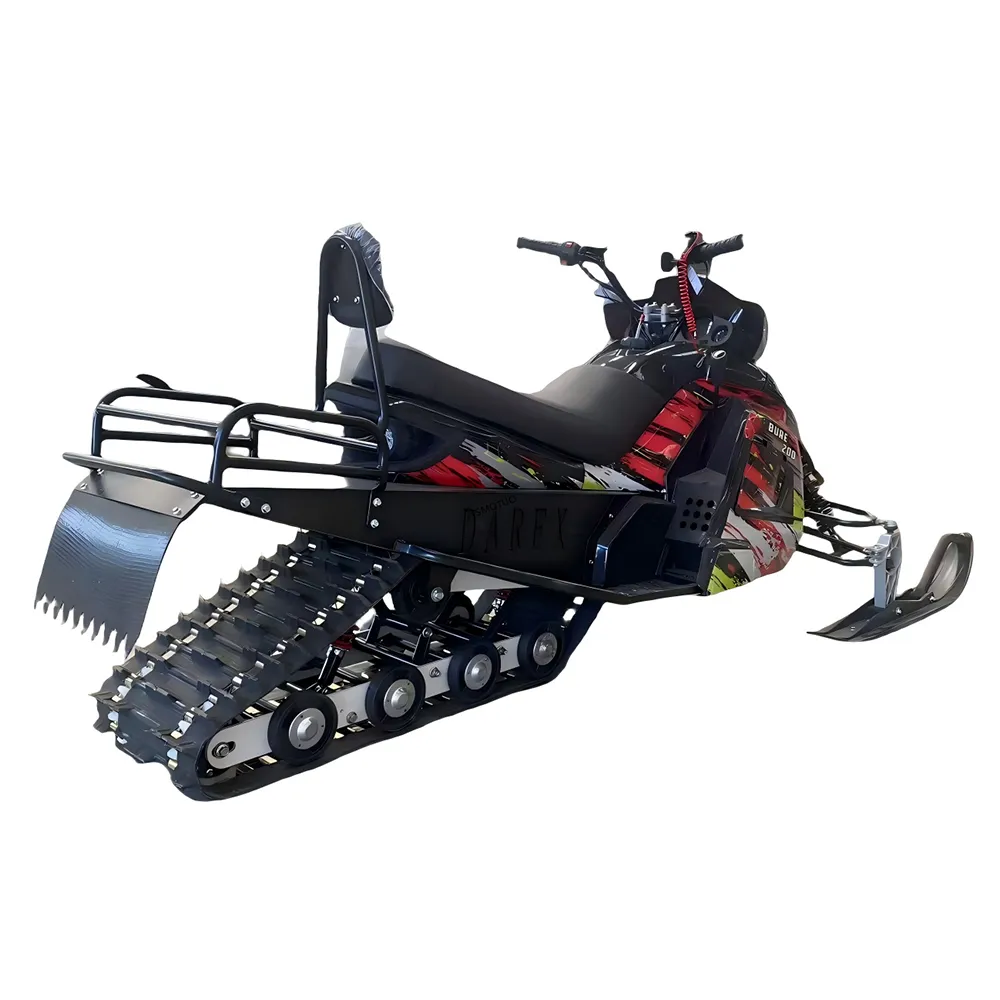

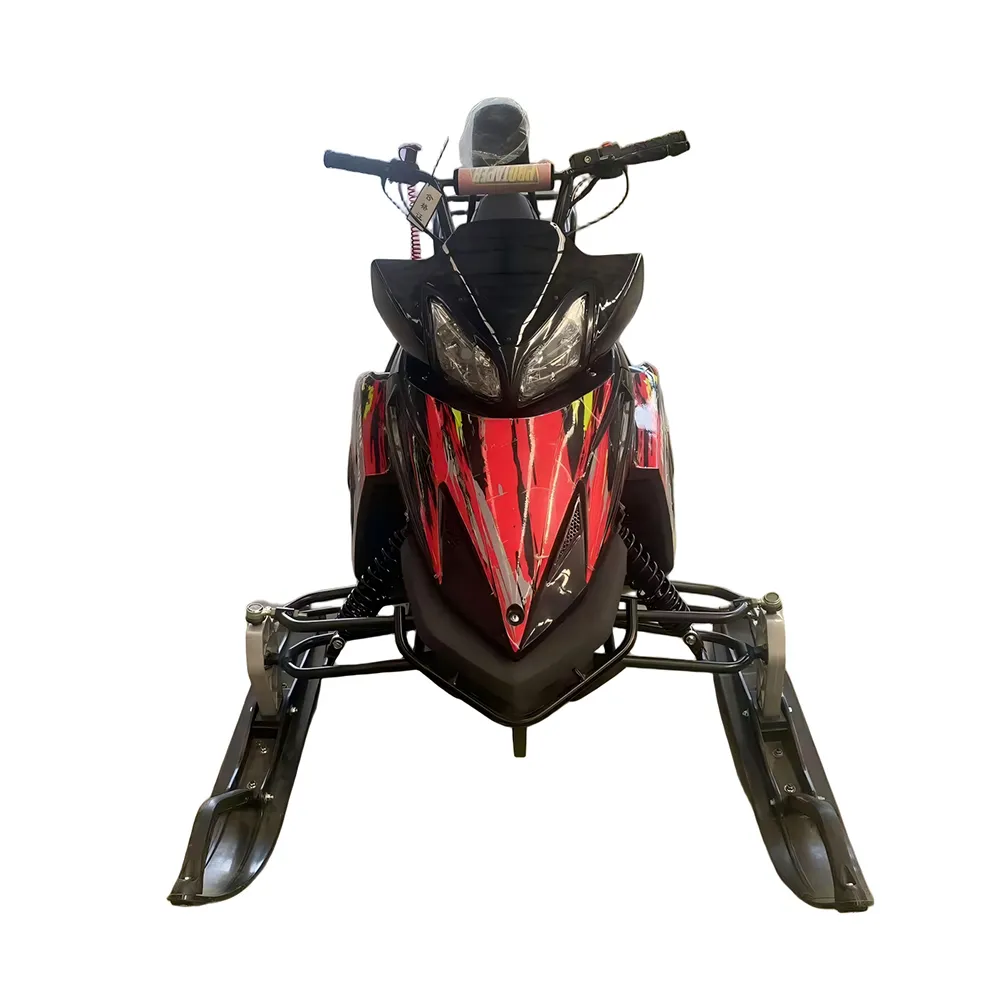

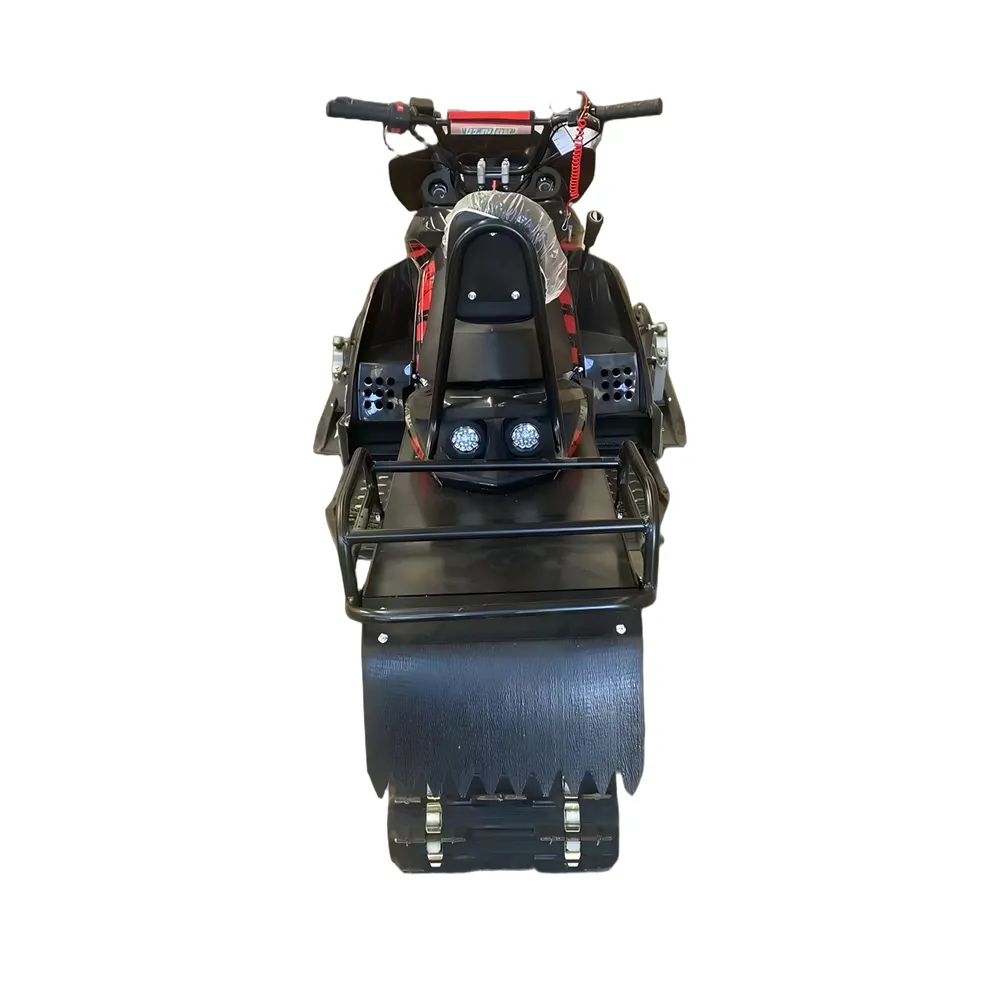

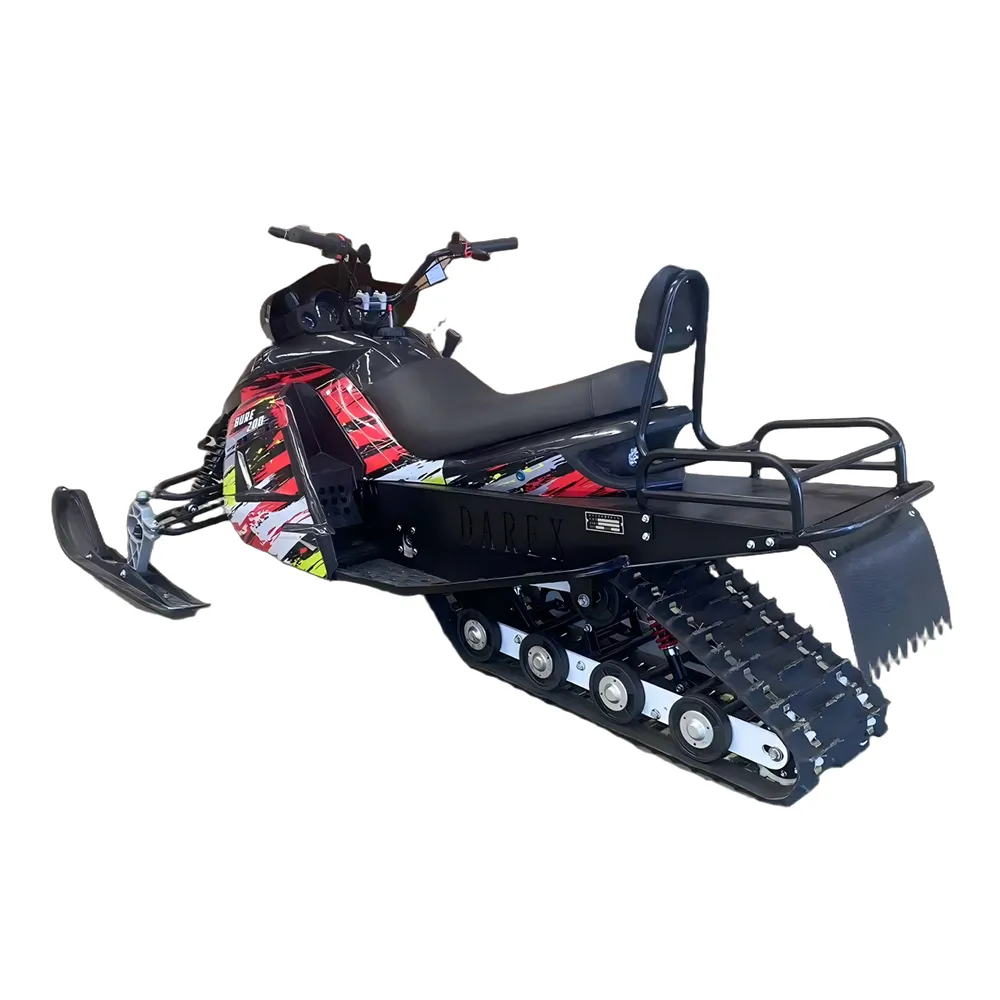

Snowmobile
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: ceo@fs-moto.comTechnical Parameters
- Basic parameters
- Vehicle body parameters
- Wheel brake
- Multimedia / Comfort Configuration
- Lighting configuration
- Optional Configuration content
| Type | Single cylinder, four-stroke, forced air cooling + oil cooling, with balanced shaft |
| Cylinder diameter/stroke | 61x57.8mm |
| Displacement | 170ml(Actual volume168.9ml) |
| Compression ratio | 9.3:1 |
| Maximum net power and corresponding speed | 8.3KW/7000r/min |
| Maximum torque and corresponding speed | 12.5N.m/5500r/min |
| Transmission mode | continuously variable automatic transmission + gear set transmission |
| Starting method | Electric start/manual start |
| Ignition method | ECU/CDI |
| Spark plug model | CR7HSA |
| Minimum no-load stable speed | 1700±100r/min |
| Minimum fuel consumption | ≤354g/kw.h |
| Maximum speed | 60km/h |
| Fuel tank capacity | 21L |
| Vehicle size | 2600x1150x1100mm |
| Packing box size | 2400x880x1050mm |
| Track length x width x tooth height - pitch | 3000x380x44mm |
| N.W/G.W | 175/240kg |
